Pipe Freeze Machine Kit, CO2 Powered
Details of Rental Item
Pipe size capacity
1/8" to 2" lines
Pipe type
steel, copper, cast iron, aluminum and plastic
Freeze Time
5 min - 1/2" Copper Pipe // 3 min - Cast Iron Pipe
CO2 Tank
(1) Included
Rental Rates
1/2 day
28 days
Selected accessories will also be added to cart
Click here to send a reservation request or to get more information.
Request Reservation

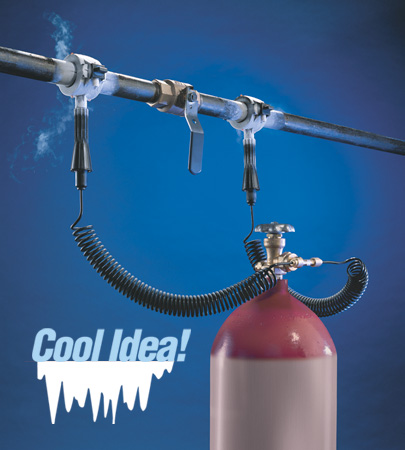

Pipe Freeze Machine for quick fixes on live systems by freezing the water to create a "plug" that isolates the area to be serviced.

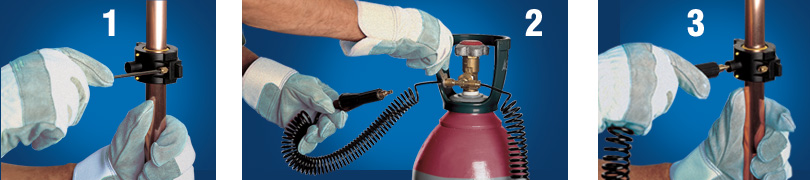

The Cold-Shot is easy to use. Just place the freeze head around the pipe, attach the hose, and open the cylinder valve. Liquid carbon dioxide will flow into the freeze head and form dry ice with a temperature of minus 110F° (-79C°). That’s cold enough to form an ice pack that can withstand 7,000 psi, yet won’t damage pipes.

***CO2 Tank Included***
- Always wear Safety Glasses and Gloves
- Do Not Overtighten Pipe Clamps
- Do not hit frozen freeze heads to remove from pipe - allow to thaw
- Install Freeze heads minimum 12" apart, keep away from fittings

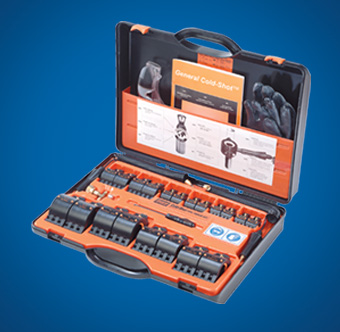

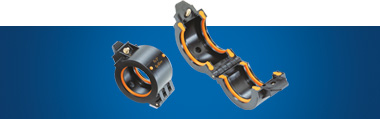

Kit includes 10 sets of freeze heads for 1/8" to 2" lines (10mm to 60mm), two high pressure spiral hoses with injectors, T-distributor, locking nut, hex head screwdriver, and carrying case.

With a Cold-Shot, you don’t have to drain water lines, sprinkler systems, or hot water systems before cutting pipe or tubing. It keeps a fully pressurized system operating while you make repairs.

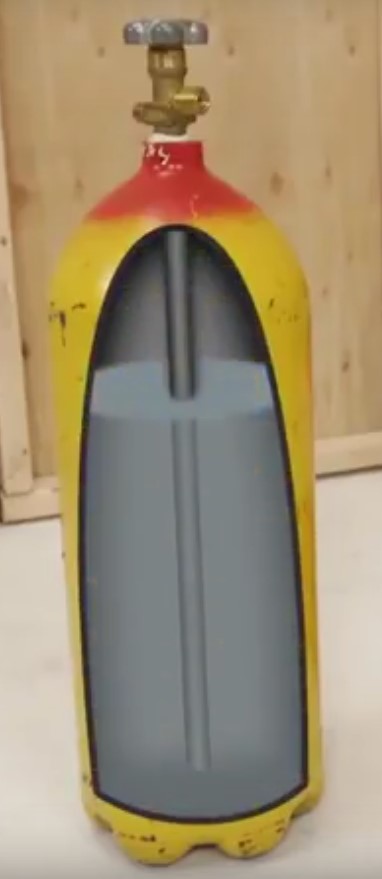

The Cold-Shot freezes liquids in steel, copper, cast iron, aluminum and plastic pipes ranging from 1/8" through 2" (10 to 60mm) using carbon dioxide (CO2). Dip tube-type CO2 cylinders are available from any welding supply house.

The Cold-Shot works faster than “refrigerator-type” units, is more compact and less expensive. It’s faster and uses less CO2 than “bag-type” pipe freezers, because the freeze head makes a better seal around the pipe. In five minutes you’re ready to go to work on 1/2" copper tubing, and just three minutes for cast iron pipe.

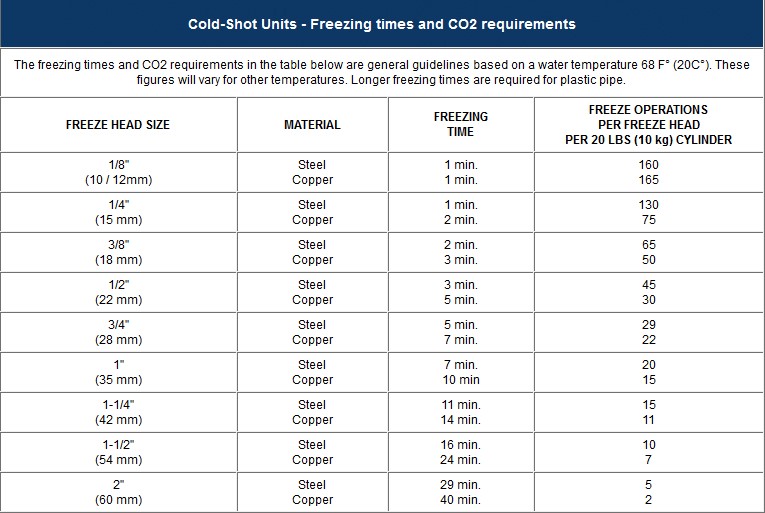

Cold-Shot Units - Freezing times and CO2 requirements
The freezing times and CO2 requirements in the spec sheet are general guidelines based on a water temperature 68 F° (20C°). These figures will vary for other temperatures. Longer freezing times are required for plastic pipe.
