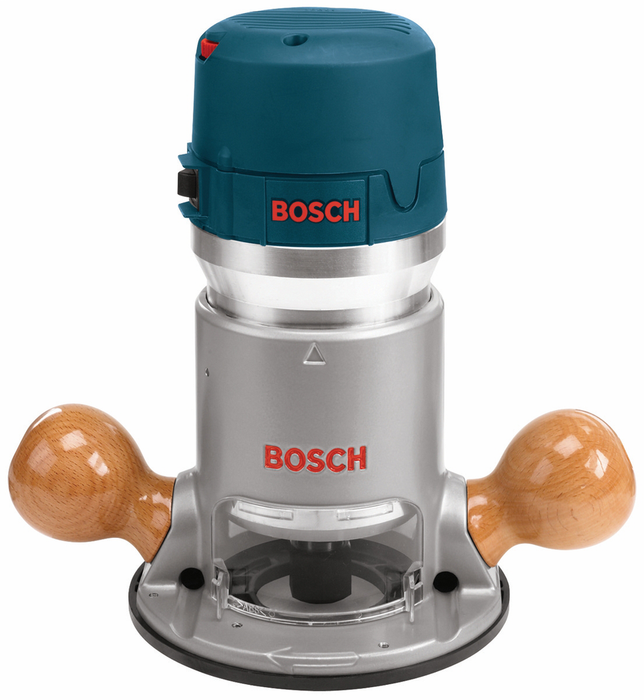

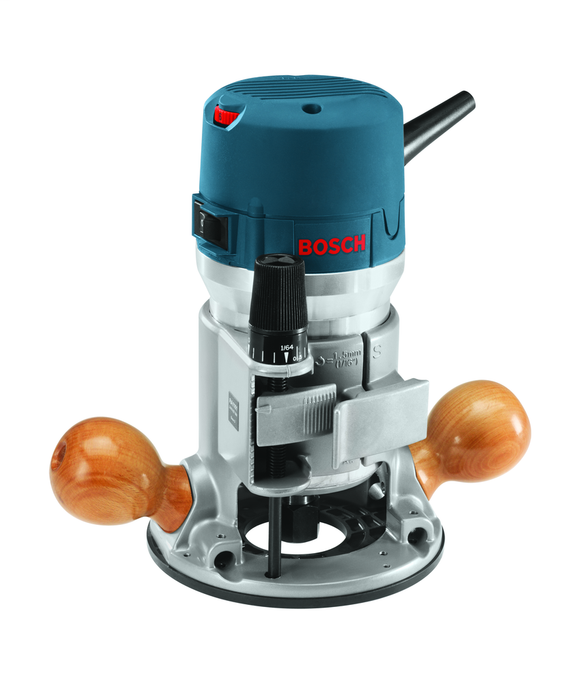

2.25 HP Electronic Fixed-Base Router

The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.

Features

• Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
• Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides
• One-piece armature shaft
• Dust-sealed power switch
• Right or left switch location - for user preference and consistency (motor does not rotate during depth adjustment)
• 12 Amp router motor - combines ample power with adjustable speed settings, allowing users to glide along cutlines
• Rounded hardwood handles maximize user control
• 2 In. sub-base opening
• Double insulated
• Power switch - now includes dust-sealed power switch
• Adjustable speed dial (8000-25,000 RPM)
• Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
• Microfine bit-depth adjustment
• Constant Response circuitry stabilizes start-up torque
• Threaded three-hole base pattern

Attachments

• Bosch RA1166
• Bosch RA1181
• Bosch RA1171
• Bosch RA1152
• Bosch RA1054
• Bosch RA1126
• Bosch RA1172AT
• Bosch RA1165
• Bosch RA1161
• Bosch RA1151

Specifications

• Housing Material: Aluminum
• Variable Speed: Yes
• Base Opening: 3-3/4"
• Weight (lbs): 8.3 lb
• Dust Collection: No
• Length (in): 6
• Cordless / Corded: Corded
• Width (in): 10
• Secondary Collet Size: 1/4 Inch
• Cord Length (ft): 10
• Color / Finish: Blue
• Router Base Type: Fixed
• Plunge Lock Control: No
• Depth Capacity (in): 1
• Lock-on Switch: No
• UL Listed: Yes
• Voltage: 120
• Base Diameter (in): 6
• Handle Type: Classic wood handles
• Maximum RPM: 25000
• Motor Horsepower (hp): 2.25
• CSA Certified: No
• Spindle Lock: No
• Electronic Speed Control: Yes
• Rating: 120V AC
• Fixed-Base Depth Range: 1-5/8"
• Fence Included: No
• Voltage (V): 120
• Collet Capacity: 1/4", 3/8", 1/2", 8 mm
• Case Type: No Case Included
• Depth Adjustment: Yes
• Country of Origin: Mexico
• Switch Type: Toggle on-off switch
• Base Diameter: 6"
• Cord Length (in): 120
• Powered Tool Power Source: Electric - Corded
• GTIN: 00000346304732
• Weight: 8.3 lb
• Adjustable Depth Stops: No
• Bit Change Type: 1/4 In. and 1/2 In. Self-releasing Collet Chucks
• Horsepower (hp): 2.25
• Primary Collet Size: 1/2 Inch
• Net Tool Weight (lbs): 8.3
• Tool Storage: No Case Included
• Subbase Opening: 2"
• Brand / Model Compatibility: RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables
• ETL Listed: No
• Amperage (A): 12
